AllieCatKeeb Sofle (ZMK Firmware)

Overview

The AllieCatKeeb Sofle is a fully custom, wireless split keyboard running on the open-source ZMK firmware; re-imagined from the ground up to be smarter, prettier, and easier to flash. This project combines embedded firmware development, CI/CD automation, and UX-driven design into a cohesive, community-ready package.

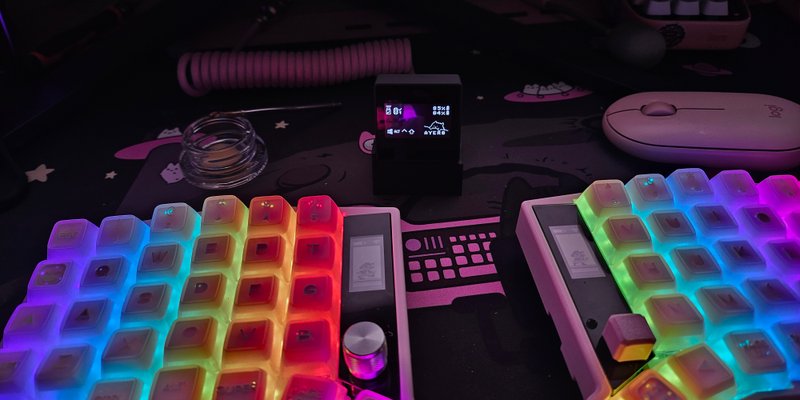

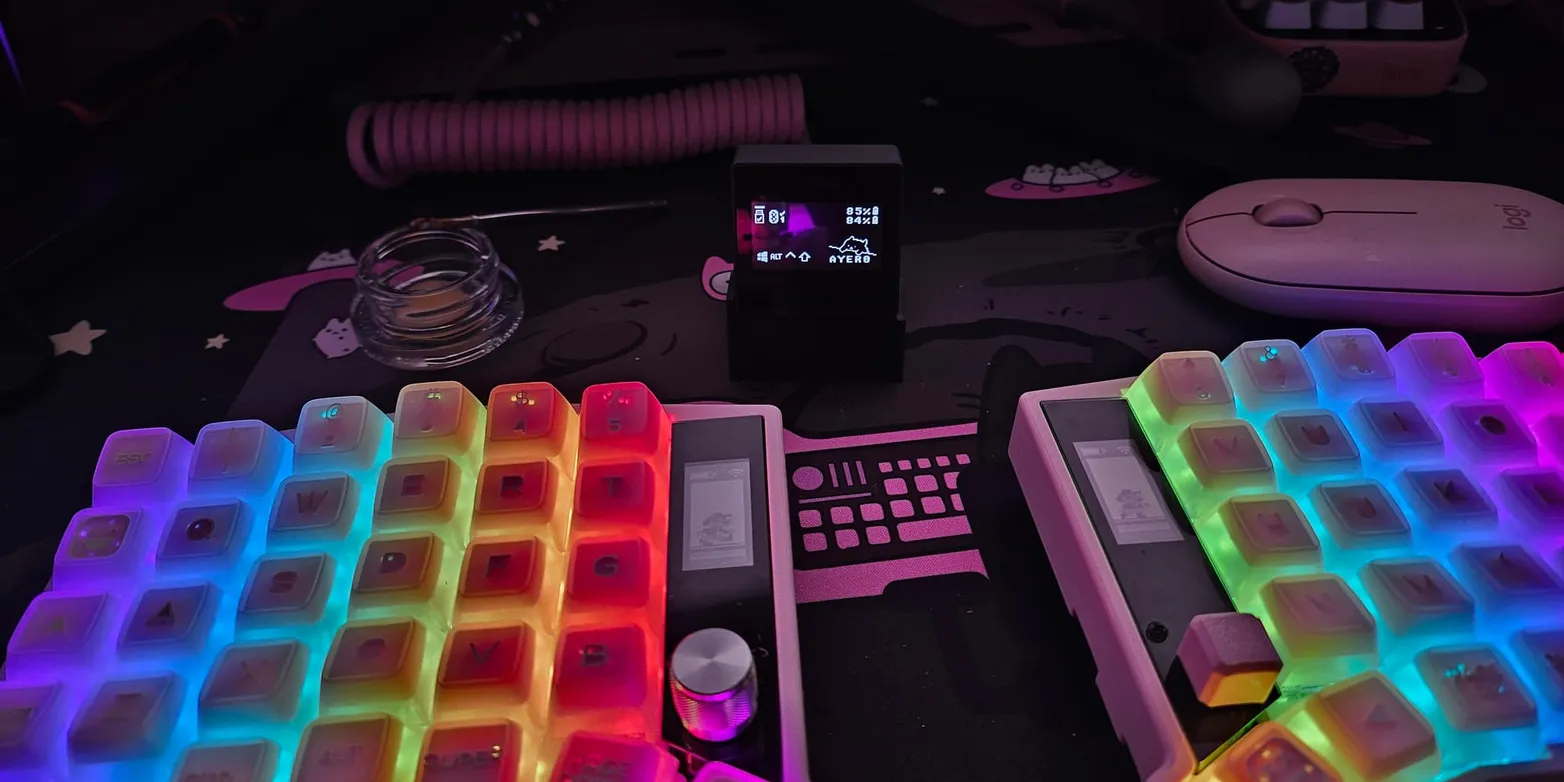

Built for the Eyelash Sofle hardware, the firmware ships with automatic keymap builds, visual diagrams, display support, RGB underglow, and multiple connection modes — all powered by Nice!Nano controllers and GitHub Actions.

Problem

ZMK is an incredible ecosystem for custom keyboards but building, flashing, and maintaining firmware across multiple layouts can get complicated fast. I wanted a setup that “just works”: a firmware that’s self-updating, CI-verified, and ready to flash without touching a compiler, even for non-technical users.

Solution

I built a full ZMK development workflow tailored for my AllieCatKeeb Sofle, complete with CI/CD, GitBook docs, and prebuilt firmware artifacts.

Key capabilities:

• Automated firmware builds for every variant (standard, dongle, and reset) using GitHub Actions.
• Graphical keymap editor integration via ZMK Studio — edit your layout without recompiling locally.
• Dual-mode operation:
  • Standard split keyboard mode (left-side master).
  • Dongle mode using a unified receiver and Nice!Nano-based wireless bridge.
• OLED and Nice!View display support with custom status widgets (including a Bongo Cat, of course 🐱).
• RGB underglow and low-power tuning for extended battery life.
• Fully documented GitBook and Wiki, synced from the repo’s /docs directory.

The goal: a firmware that’s developer-friendly but accessible enough for anyone to flash.

Challenges

Balancing flexibility with ease-of-use was the hardest part. I needed a firmware pipeline that supported three operating modes, auto-built diagrams, and multiple controller targets all without breaking ZMK’s upstream compatibility. Through trial, error, and automation, I built a CI/CD flow that generates, tests, and publishes firmware automatically whenever keymaps change.

Impact

• Turned firmware flashing into a one-click process for users.
• Reduced firmware release prep time from hours to minutes through automation.
• Made the Sofle platform more approachable for newcomers to ZMK.
• Established a maintainable GitBook-based documentation hub for the entire keyboard line.

Reflection

This project started as a personal obsession with keyboards but it became a case study in embedded DevOps. From YAML pipelines to power-saving firmware tweaks, it bridges software reliability and maker creativity. It’s also a reminder that hardware projects deserve the same polish as production software with automated builds, clean docs, and personality.

Tech Stack

ZMK Firmware, GitHub Actions, Nice!Nano v2, OLED / Nice!View displays, GitBook, Markdown Docs, Semantic Versioning
